Key takeaways
- A healthy Can-Am charging system reads 13.8-14.7 volts at the battery by 3000 rpm.
- The cluster display and a multimeter at the battery can disagree by half a volt when a connector or ground has gone bad.
- A good stator reads 0.2-0.6 ohms phase to phase and open to ground, never continuity to ground.
- Heavy accessories like light bars and winches can overload a perfectly good stator, so add up the amps before blaming a part.
- A regulator that lets voltage climb past 15 volts, or never gets the battery past 12.5 volts, has failed the diode test for a reason.
The light bar sags first. You are idling into camp after dark on a Can-Am Defender, and the amber pods dim just enough to notice before they climb back to full brightness. A few minutes later the battery icon lights up on the digital cluster, then disappears once you rev past 4000 rpm.
That flicker is the charging system trying to tell you something before it fails outright. Most riders reach for a battery charger first. That fix holds for a ride or two before the machine strands someone at the far end of a trail with the winch clutch clicking and no current to run it.
Can-Am’s charging system, the magneto stator, the regulator rectifier, and the connector between them, fails in a handful of predictable ways across the Maverick, Maverick X3, Defender, Outlander, and Commander lineup. Knowing which part actually quit saves a trip to the parts counter and a wasted 200 dollars on the wrong component.
This walkthrough covers what the cluster display is really telling you, how to confirm it with a meter at the battery, and how to test the stator and regulator rectifier with real numbers instead of a guess.
How the Can-Am Charging System Is Built
Every machine in this lineup uses a magneto stator mounted to the engine’s flywheel instead of a separate alternator bolted on. Magnets cast into the Rotax flywheel spin past copper windings in the stator plate, generating AC current across three phases that climbs into the 20-40 volt range per phase pair by 3000 rpm.
That raw AC current runs through a short harness to the regulator rectifier, a sealed unit usually bolted to the frame rail near the front differential on a Defender or Outlander, or mounted under the hood near the radiator on a Maverick X3. The rectifier half converts AC to DC, and the regulator half clips the output to a safe window, typically 13.8-14.7 volts at the battery.

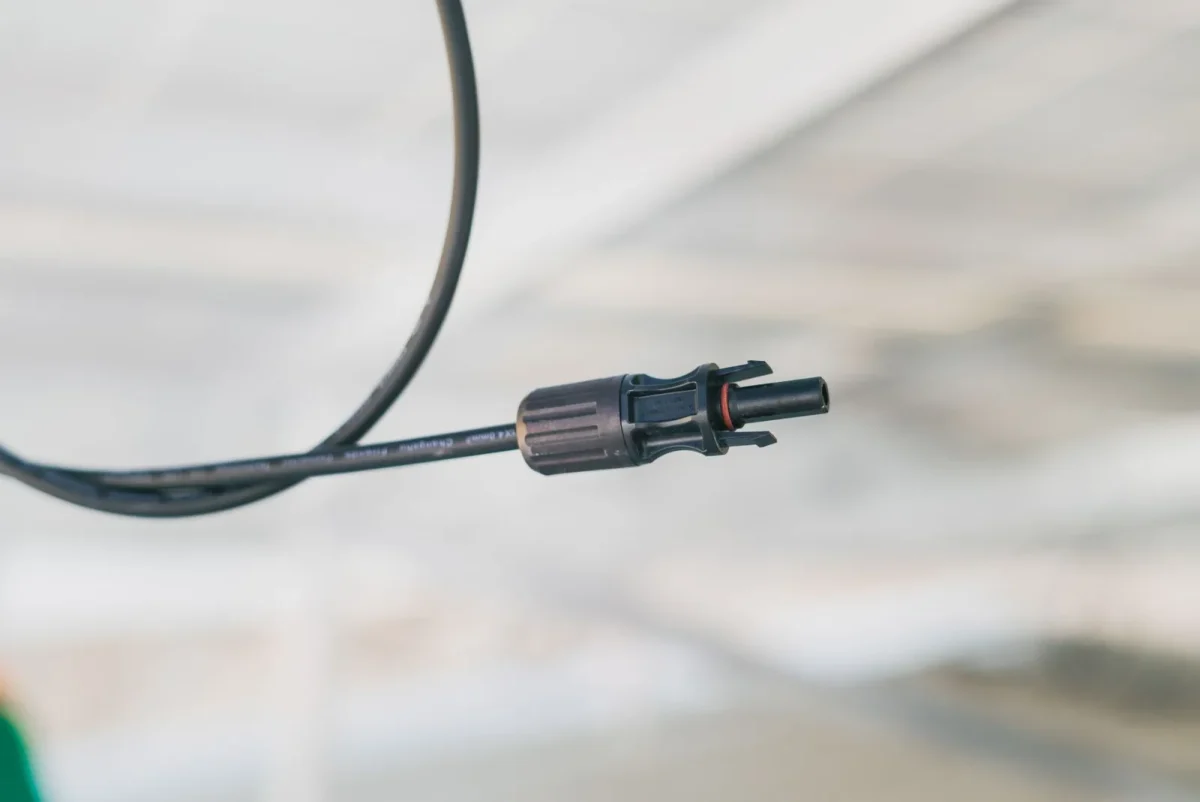

Between those two parts sits a connector carrying real current, sometimes 20 amps or more on a loaded Maverick X3 running a winch and lights. That connector, along with the ground strap near the engine mount, causes more charging complaints in the shop than an actual failed stator.
Cluster Voltage vs a Meter at the Battery
The digital display on a Maverick, Defender, or Commander shows a voltage readout or a battery icon, but that number is sampled from the main electrical bus, not straight off the battery terminals. A cluster reading of 13.9 volts can still hide a bad connection between the battery and the rest of the harness.
Before condemning any part, clip a multimeter directly to the battery posts and compare that number to what the dash shows at the same rpm. A gap of more than 0.3-0.5 volts between the two usually points at a corroded battery terminal, a loose ground, or a chafed wire, not a dead stator or regulator.
Tip
Clean and retorque both battery terminals before any other testing. A loose or corroded terminal on a Can-Am often reads fine at rest and drops under load, mimicking a charging fault that does not actually exist.
The Voltage Test You Can Run in the Driveway
Start with the engine off and the multimeter set to DC volts. A rested battery should read 12.6-12.8 volts. Anything under 12.4 volts means charge and load test the battery before touching the charging system, since a weak battery skews every reading that follows.
Start the engine and hold a steady 3000 rpm with the headlights and accessories off, then read the battery again.
| Test Point | Expected Reading | What It Means |
|---|---|---|
| Battery at rest, engine off | 12.6-12.8 volts | Battery is charged and ready for testing |
| Idle, no accessories | 12.8-13.4 volts | Normal at low rpm, not a fault by itself |
| 3000 rpm, no accessories | 13.8-14.7 volts | Healthy charging system |
| 3000 rpm, lights and winch running | 13.2-13.8 volts | Acceptable under real load |
| Any rpm, reading under 13.0 volts | Below 13.0 volts | Undercharging, test stator and regulator |
| Any rpm, reading over 15.0 volts | Above 15.0 volts | Overcharging, suspect the regulator |
Quick Checklist Before You Test
- Battery terminals are clean and torqued to spec
- Rested battery voltage reads at least 12.6 volts
- Accessories are off for the baseline reading
- Meter is set to the correct range: DC volts, AC volts, ohms, or diode
- Readings are written down with the rpm and load noted
If the 3000 rpm reading with no accessories running falls in the 13.8-14.7 volt window, the charging system is doing its job at that moment. Turn on the light bar, the stereo, and the winch solenoid and read again. A number that sags under 13 volts under that load points at a stator or connector that cannot keep up, not necessarily a hard failure.
Testing the Magneto Stator
Two tests confirm a Can-Am stator without pulling the flywheel cover apart. First, unplug the stator connector and set the meter to ohms. Read across each pair of the three stator leads. Most Can-Am stators show 0.2-0.6 ohms phase to phase, with all three pairs reading within about 0.1 ohm of each other.
Second, check each lead against a bare metal ground point. A healthy stator reads open, essentially infinite resistance. Any needle movement or a low ohm reading to ground means the windings have shorted internally and the stator needs to come out.
With the stator connected and the engine running, switch the meter to AC volts and probe across each lead pair at the connector. Expect the reading to climb with rpm, landing around 20-40 volts AC per pair by 3000 rpm on most Maverick and Defender models. A pair reading noticeably lower than the other two points at a partially shorted winding.
Safety
The flywheel and drive belt sit close to the stator connector on most Can-Am models. Keep hands and meter leads clear of moving parts, and let the exhaust and CVT housing cool before reaching in for a live AC reading.
Testing the Regulator Rectifier
The regulator rectifier gets blamed for every charging complaint, and it fails often enough to deserve some of that reputation, but confirm it before spending 150-300 dollars on a new one.
Set the meter to diode mode and probe across the rectifier’s output terminals in both directions. A good diode pair passes current one direction, usually showing 0.4-0.7 volts, and blocks it the other direction with an open reading. A diode that shows continuity both ways, or infinite resistance both ways, has failed.
Heat is what kills these units, and Can-Am’s tight bodywork does the regulator no favors. Check that the mounting bolts are tight against bare metal, since the case uses the frame as a heat sink. A regulator mounted over paint or undercoating runs hotter and fails sooner than one bolted to clean metal.
A good stator paired with a bad regulator usually shows one of two faces. Either the battery never climbs past about 12.5 volts no matter the rpm, or it climbs past 15 volts and starts costing bulbs and battery life. Both point at the regulator once the stator has already tested clean.
When Lights, Winches, and Stereos Outrun a Stock System
A stock Maverick or Defender charging system is sized for factory equipment, typically 25-35 amps of stator output depending on the model. A 40 amp light bar, a winch solenoid holding coil, a Bluetooth stereo, heated grips, and a phone charger can add up to 15 amps or more of continuous draw.
None of that is a defect. It is arithmetic. A stator that tests perfectly clean on the bench can still leave a heavily accessorized machine short by 2-3 amps at idle, enough to slowly drain the battery over a long day of trail riding with everything switched on.
One Defender that came into the shop last fall had a complaint that the winch worked fine at the trailhead and struggled by the third pull an hour later. The stator and regulator both tested within spec. The battery was only 18 months old but had lost roughly 15 percent of its capacity, just enough that a 30 amp winch pull on top of a light bar and heated grips dragged the system into the red. A new battery, not a new stator, fixed it.
If the stator and regulator both test within spec but the battery still reads low after a day of use, add up the accessory amperage draw and compare it to the stator’s rated output in the service manual before assuming a part has failed.
Confirm the Fault Before You Order Parts
Work through the tests in order: battery condition, cluster reading versus meter, voltage at 3000 rpm, stator, then regulator. Jumping straight to a new stator because the battery light came on wastes money about as often as it fixes anything.
Keep a note on your phone of every reading, the rpm, and whether accessories were running. Those numbers matter if you call a dealer parts counter or a forum for a second opinion, and they matter just as much if the same symptom returns next season.
Most Can-Am charging complaints trace back to one of three things: a stator winding that shorted internally, a regulator that can no longer hold voltage in range, or a connector and ground that added resistance nobody could see. Test all three in order, replace only the part that actually failed, and the repair should hold for years instead of one more trip back to camp.
Frequently asked questions
Why does my Can-Am cluster show a battery warning even though the engine runs fine?
The warning usually triggers once system voltage drops under about 12.5-13 volts while the engine runs, which the cluster reads as undercharging. Check the reading at the battery with a multimeter first, since a loose terminal or bad ground can set off the same warning as a failed stator. If the meter shows 13.8-14.7 volts at 3000 rpm, the light was likely a brief connection glitch rather than a real fault.
Can I test a Can-Am stator without removing the flywheel cover?
Yes. Unplug the stator connector near the front of the engine and read resistance across each pair of the three leads with the meter set to ohms. Most Can-Am stators read 0.2-0.6 ohms phase to phase with the engine cold. You can also read AC voltage across each pair at the connector while the engine runs, without opening the cover at all.
How much does a Can-Am regulator rectifier cost to replace?
An OEM regulator rectifier for a Maverick, Defender, or Outlander typically runs 120-300 dollars for the part alone, depending on model and output rating. Labor to swap it usually adds 1-2 hours if the mounting location is accessible, less if bodywork has to come off first.
Will installing a bigger battery fix a Can-Am charging problem?
No. A bigger battery holds more reserve capacity, which can mask a marginal charging system for a while, but it adds no charging output of its own. If the stator and regulator both test within spec and the battery still drains, look at accessory draw and connector resistance before buying a larger battery.
What is the most common cause of Can-Am charging problems on machines running a winch or light bar?
In shop experience, a corroded or partially melted stator connector causes more complaints than an actual failed stator or regulator. The added resistance from corrosion shows up as heat under load, exactly when a winch or light bar demands full output. Cleaning that connector, or replacing it if the pins look discolored, solves a surprising share of Can-Am charging complaints.
