Honda Foreman Won’t Start When Hot

The Foreman fires up on the first crank every cold morning. Run it hard for an hour, shut down for ten minutes, turn the key again, and you get a single clunk, a weak grind, or nothing at all.

That pattern, a strong cold start paired with a weak or dead hot start, narrows things down fast. A machine that struggles equally hot and cold usually has a plain dead battery or a loose connection somewhere.

A machine that only fails once it’s hot is telling you something more specific: heat, resistance, or a part that only slips when warm. This covers TRX500 Foreman models from 2005 to today.

Four suspects cover almost every hot start complaint on this machine: a heat soaked starter, a battery weaker than it looks, high resistance in the cables and grounds, and the one way starter clutch behind the flywheel. By the end you’ll know which one you have before spending a dollar guessing.

Cold Starts Fine, Hot Starts Don’t: What That Pattern Tells You

Two things change when a Foreman’s engine gets hot. The resistance in every copper connection goes up, and the oil bathing the starter clutch behind the flywheel gets thin.

Neither matters much on a healthy circuit, but both matter once something is marginal. Copper resistance climbs about a third of one percent per degree Celsius.

Stack that on a corroded ground bolt or a frayed cable, and the extra resistance can drop cranking voltage below what the starter needs.

The starter clutch works the opposite way. It relies on spring loaded rollers biting into a tapered race to grab the flywheel.

Cold, thicker oil gives worn rollers a little extra drag to work with. Hot, thin oil lets those same rollers slip, and the starter spins freely without ever turning the engine over.

Electrical No Crank or Starter Clutch Grind: Tell Them Apart in Ten Seconds

Before you touch a meter, listen. This one test splits the whole diagnosis in half.

If you turn the key and hear the starter spin, a whine or grind that doesn’t change pitch while the engine never moves, that’s the one way clutch. The motor has power and is turning, it just isn’t grabbing the flywheel.

If you get a single clunk, a slow labored grind that sounds like it’s straining, or nothing but a click from the solenoid, that’s electrical. The motor isn’t getting enough voltage and current to turn, or isn’t getting power at all.

Write down which sound you heard. It decides whether the rest of this guide sends you to a multimeter or to the flywheel cover.

Battery Test: Resting Voltage and Cranking Voltage While Hot

Start with the battery, even if you suspect the clutch. It takes five minutes and rules out the cheapest fix.

With the engine off and still hot, set a multimeter to DC volts and read across the terminals. A healthy Foreman battery rests at 12.6 to 12.8 volts.

Under 12.4 volts it’s partially discharged. Under 12.0 volts it’s failing, even if it cranked fine yesterday.

Have someone crank the engine, or crank it yourself with the meter leads clipped on, while you watch the reading. Voltage should not drop below 9.6 volts while cranking hot.

If it sags to 8 volts or lower, or collapses the instant the key turns, the battery is the weak link, even if it rested fine minutes earlier.

This test catches a battery that looks fine cold. A weak cell can hold 12.6 volts at rest and still collapse under the higher draw of a heat soaked starter.

Resting voltage tells you the battery has charge. Cranking voltage tells you if it delivers that charge under load, and a replacement battery runs $80 to $120.

Voltage Drop Testing: Starter Cables and Ground Points

If the battery passes, move to the wiring between the battery and the starter. Heat causes trouble here, since a mostly corroded connection can still pass current when things are cool.

A standard resistance check with the engine off often misses this. An ohmmeter’s tiny test current can read under 1 ohm through a joint that behaves differently once 100 amps of starter current tries to pass through it.

That’s why the voltage drop test, done while the starter is actually cranking, tells the truth. Set the meter to DC volts and test with the engine cranking, not sitting still.

• Positive cable: battery positive terminal to the starter’s main terminal, while cranking. Stay under 0.2 volts.
• Ground path: battery negative terminal to bare engine metal, while cranking. Stay under 0.2 volts.
• Frame ground: engine block to the frame near the front rack mounts, while cranking. Stay under 0.2 volts.
• Solenoid signal wire: key at start, should read close to full battery voltage instantly.

Anything over 0.2 volts means real resistance is stealing your cranking power right there. Half a volt or more on the ground between engine and frame is common on a Foreman that’s spent time in mud and water.

Hot Start Numbers at a Glance

Foreman Ground Points and the Mistake Most Owners Make

The Foreman has three ground connections worth knowing: battery negative to frame near the battery tray, engine block to frame by a braided strap, and frame to the front rack mounting bolts.

All three sit low on the machine, right where mud, water, and road salt collect all season. I’ve watched more than one Foreman owner buy a second battery before anyone cleaned that front ground point.

The old battery tested fine on a shelf at the parts store: cold, still, no load on it anywhere. It was never the battery.

It was a ground bolt under the rack with a thin green film of corrosion that only caused trouble once the engine was hot and the starter needed real current.

Pull each ground bolt and clean both surfaces back to bare metal with a wire wheel or sandpaper. Reinstall with a light coat of dielectric grease on the outside only, never between the metal surfaces themselves.

Torque the ground bolts to 7 to 9 pound feet, snug against a lock washer, not gorilla tight into the aluminum case.

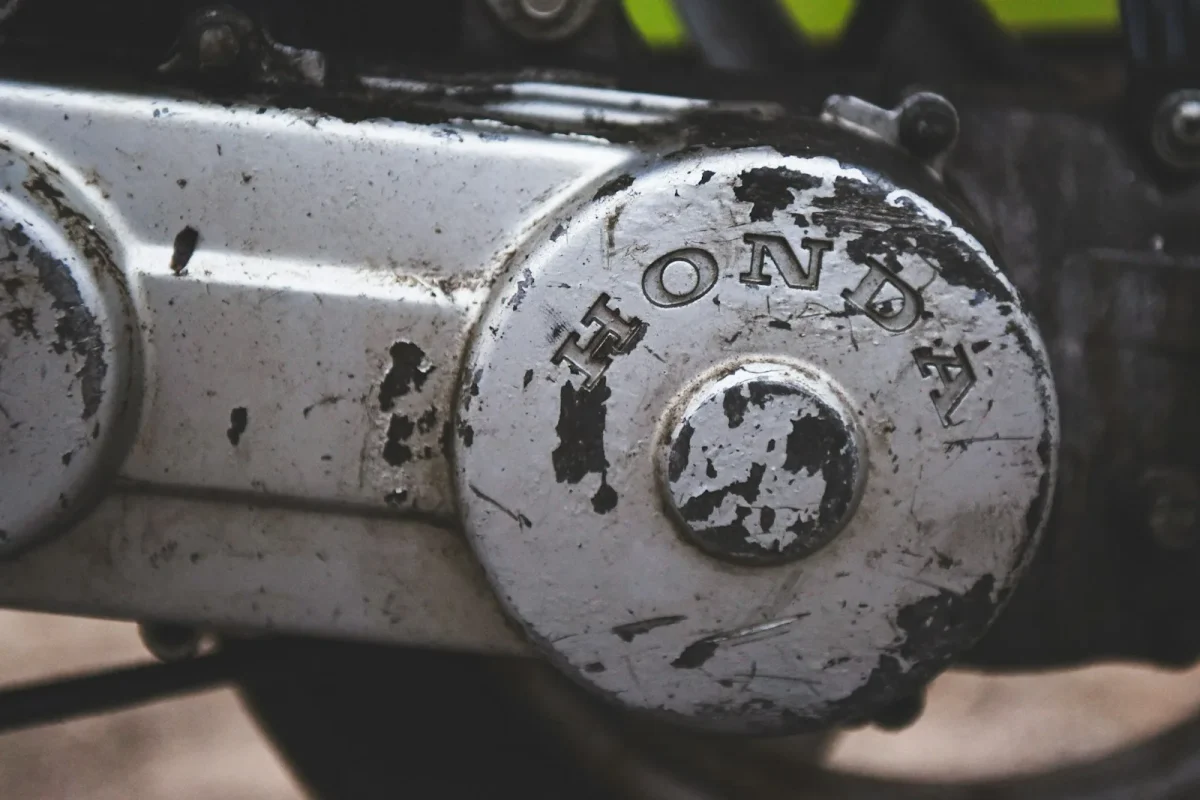

The Starter Clutch (Sprag) Behind the Flywheel

If the electrical tests come back clean and you still get that spinning, grinding sound with no engine rotation, the problem lives behind the flywheel. Honda‘s starter clutch, also called a sprag or one way clutch, is a small assembly of spring loaded rollers riding in a tapered race, mounted right behind it.

When you press the starter button, the motor spins a gear that drives those rollers. Cold, the rollers wedge into the tapered race and lock the flywheel to the starter shaft.

Once the engine fires and spins faster than the starter, the rollers release automatically so the starter isn’t dragged along.

Wear rounds off the rollers and race over hundreds of starts. A worn clutch needs the extra drag of cold, thick oil to grab properly.

Hot, with thin oil, those same rollers spin past the race instead of biting. You get a starter that runs free with no load, spinning louder than normal, while the engine sits still.

This repair means pulling the flywheel cover, draining the oil, and removing the flywheel with a puller. Replace the clutch rollers and springs, or the full assembly, and check the driven gear for chewed teeth.

Parts run $60 to $150 depending on whether you replace the full assembly or just the wear items. Expect 2 to 3 hours of labor with the right puller, more for a first timer.

From Test Results to a Fix That Sticks

Line up what you found. A resting voltage under 12.4 volts, or a cranking voltage under 9.6 volts hot, points at the battery, even if it seemed fine yesterday. A voltage drop over 0.2 volts on any cable or ground points at corrosion, usually the cheapest fix on this list.

A starter that spins free with a grind and no engine rotation points at the clutch behind the flywheel, a Saturday job rather than an hour job. Retest after every fix: clean a ground point, crank hot again, and recheck the voltage drop rather than assume it worked.

Plenty of Foreman owners chase two problems at once, a tired battery and a corroded ground, and only find the second because the first fix didn’t fully solve it. Test in order, write down what you find, and you’ll know exactly which part to replace, clean, or torque down before you spend another dollar guessing.

Frequently asked questions

Why does my Honda Foreman start fine cold but not once it's been running?

Heat raises resistance in every wire and connection, and it thins the oil that helps a worn starter clutch grab the flywheel. A connection or clutch that's barely getting by cold can fail once the engine and starter heat soak after a ride. That's why the pattern points at heat specific causes rather than a simple dead battery.

How can I tell if it's the battery or the starter clutch?

Listen before you test anything. A starter that spins or grinds but never turns the engine over points to the one way clutch behind the flywheel. A weak click, a slow labored crank, or complete silence points to an electrical problem in the battery, cables, or grounds instead.

What voltage should the battery show when the Foreman won't start hot?

Resting voltage should read 12.6 to 12.8 volts with the engine off. While cranking hot, voltage should not drop below 9.6 volts. A collapse to 8 volts or lower during cranking points to a weak battery even if it rested fine a minute earlier.

Can a bad ground really stop a Foreman from starting once it's hot?

Yes. Corrosion at a ground bolt can pass enough current to crank a cold engine and still fail under the higher draw of a heat soaked starter. A voltage drop test done under load, not a simple resistance check, is what reveals it, and the fix is often a wire brush and 20 minutes.

How much does it cost to fix a worn starter clutch on a Foreman?

Parts for the rollers, springs, and gasket typically run $60 to $150 depending on whether you replace the full clutch assembly. Labor runs 2 to 3 hours for a shop that's pulled a Foreman flywheel before, more if it's the first time.
