Polaris General Won’t Start: Diagnosis

Mud from Saturday’s food-plot run is still caked around the wheel wells. The feed bags are still bungee-corded to the bed rack. Monday morning, the General sits dead in the barn, dash dark, key doing nothing.

That is not bad luck. It is normal life for a machine that hauls, plows, and tows all week and only gets washed when it rains.

Polaris built the General 1000, General 4, XP, and Deluxe on the same platform as the RZR XP 1000, but owners work them harder: creek crossings, food plots, and fence lines instead of dunes and trailers. That difference shows up first in the wiring, where a no-start almost always begins. This guide gives the test order for each part, with real numbers at every step.

The General’s Wiring Takes a Harder Hit Than a Trail RZR

The General shares its chassis and most of its wiring harness with the RZR XP 1000. Polaris built it as the crossover: sport suspension travel with a cargo bed and a tow rating around 1,500 pounds. Owners use that capability, and the wiring pays for it.

Three things wear out faster on a work General than a trail RZR: mud packs into the main ground and corrodes a clean connection, aftermarket winches and light bars add current draw and relays the factory harness never expected, and seat belt, gear, and brake switches sit low where wash water reaches first.

Any one of those spots can leave a machine cranking fine Friday and dead Monday.

Listen First: Dead Dash, One Click, or Cranks With No Fire

Before pulling a connector, turn the key and listen. What happens in that first second tells you which half of the circuit failed.

A dead dash, no lights, no clicking, points at the battery, the main ground, or a blown fuse ahead of the ignition switch. A single click points at the master relay, the starter solenoid, or a cranking circuit not getting full current.

A strong crank that never catches points downstream: fuel delivery, spark, or a safety interlock input the ECU checks before it lets the engine fire. Each path gets its own section below, in test order.

Dead Dash: Battery, Main Ground, and the Seat Bracket Connector

Start with the battery. Polaris tucks the General’s battery under the passenger seat, so lift the seat and pull the rubber boot off the terminals first.

A healthy, fully charged battery reads 12.6-12.8 volts at rest, after sitting 30 minutes with everything off. A 12.4 volt reading is still usable but down about a quarter charge. Below 12.0 volts, the battery is the prime suspect, not the wiring.

If the dash is dark and the battery reads normal, check the main ground next: a strap and bolt behind the dash, in the passenger footwell, where mud corrodes the ring terminal on Generals that see creek crossings or regular pressure washing.

Pull the ground bolt, clean it and the ring terminal to bare metal, and torque to 18-20 ft-lbs. Dielectric grease afterward keeps water out through the next wash.

One connector owners forget: the harness plug under the seat bracket that feeds the fuse block. It flexes every time the seat lifts, and the pins loosen after a few seasons. Wiggle it with the key on and watch for a flicker.

One Click: Master Relay, Firewall Fuse Block, and the Starter Solenoid

A single click at the key almost always means the starting circuit has a signal but not enough current. That points at three parts: the master relay, the firewall fuse block, and the starter solenoid.

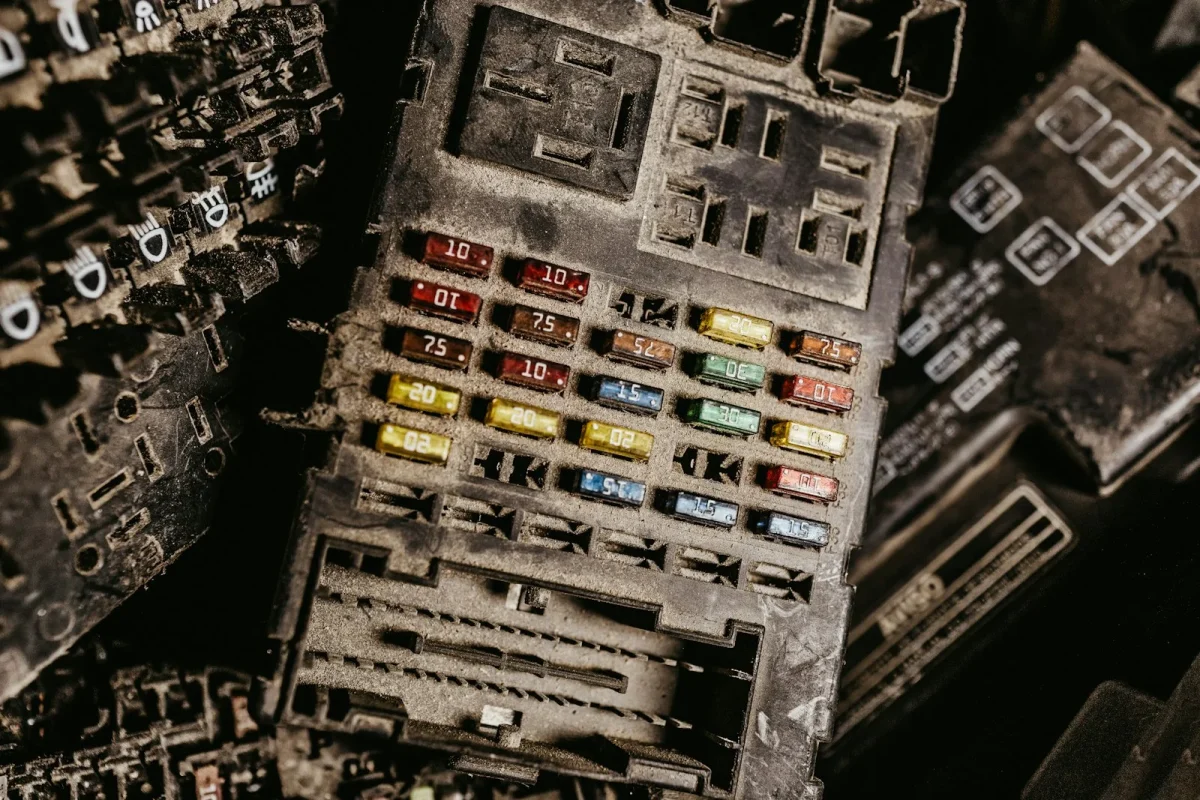

The master relay sits in the fuse and relay block on the firewall, passenger side, ahead of the dash. With the key on, read 12 volts at its small trigger terminal, not the two larger power terminals. No voltage there means the fault sits upstream, at the ignition switch or an interlock switch covered below.

That block also carries several 30 amp fuses for ignition and accessory feeds, plus smaller 10 and 15 amp fuses per circuit. Vibration cracks the internal link over time, so a fuse can look fine but read open: check each 30 amp fuse against a known good spare.

If the relay clicks and every fuse tests good, check the starter solenoid itself. Have a helper crank the key while you read voltage at its small trigger wire, which should also show close to 12 volts.

Voltage present with no pull-in means the solenoid has failed, typically a $30-50 part. While the meter is out, check the battery during cranking. It should stay above 9.6 volts, or the battery, a cable, or the ground from earlier is not delivering full current.

Cranks But No Fire: Brake, Gear, and Seat Belt Interlock Inputs

A strong crank that never lights off is usually a fuel or spark problem, but on a General, check the safety interlock inputs first: a bad signal there can shut down injector pulse just like a fuel problem would.

The General requires the transmission in park or neutral, and the brake pedal applied, before the ECU completes a start sequence. The gear position switch and brake light switch live low in the cab, behind the pedals. Corrosion there reads as an intermittent no-fire that seems to clear by morning.

The seat belt buckle switch works differently: it will not block cranking, but it feeds the body control module a signal that limits engine RPM once running. A corroded buckle connector can cause a hard limp condition, feeling like the engine caught, sputtered, and died, right after a wash.

Backprobe the gear position and brake switch connectors with the key on, watching for a clean voltage change as you move the shifter and press the pedal. A signal that hovers instead of switching cleanly between roughly 0-12 volts means that connector needs cleaning.

Once those inputs check out, check the basics: pull a spark plug and check for spark against the block, and listen for the fuel pump prime, a two-second hum, when the key goes to on. No prime points at a fuel pump relay, not an interlock problem.

General No-Start Test Points and Numbers

Keep these numbers next to the machine while you work. A real reading against a real spec stops you from replacing parts that were never the problem.

The Drain Most Owners Never Suspect: Winches and Light Bars

Here is the mistake that brings more Generals back to the shop than anything else: an aftermarket light bar or winch wired straight to the battery instead of through a switched relay.

I have pulled batteries from two-week-old Generals reading 10.8 volts because a light bar controller drew standby current around the clock, switch off or not. Just 0.1-0.3 amps, but two weeks in a barn empties a full battery.

Winches cause the same problem: a solenoid stuck slightly closed, or a wireless remote receiver left powered during storage, can pull several amps without ever engaging the winch.

The fix costs nothing but a habit change. Wire accessories through a relay triggered by switched, key-on power, not a constant hot terminal, and the drain disappears for good.

Quick Checklist Before You Replace Anything

• Confirm the battery reads 12.6-12.8 volts at rest.
• Check the main ground bolt behind the dash for corrosion.
• Test every 30 amp fuse in the firewall block, even ones that look fine.
• Verify 12 volts at the master relay trigger terminal with the key on.
• Confirm the transmission is in park or neutral and the brake pedal is fully depressed.
• Unplug winch remotes and pull light bar fuses before storage longer than a week.

Get the General Back to Work

Most Polaris General no-start problems trace back to something environmental, not a defective part. Mud, wash water, and add-on wiring cause more failures here than any factory component does.

Work the three paths in order: dead dash, single click, or crank with no fire, then test those points before replacing anything. A $15 relay or a five-minute ground cleaning fixes far more Generals than a new starter or battery ever does.

If every test above comes back clean and the General still will not start, the fault has likely moved into the ECU or a harness break. That is when a shop with a wiring diagram for your model year earns its money: bring your voltage readings and cut the diagnostic time in half.

Frequently asked questions

Why does my Polaris General crank but not start after driving through water?

Water intrusion usually reaches the gear position switch or brake light switch behind the pedals before anything else. Both need a clean signal for the ECU to complete a start sequence. Dry the connectors, apply dielectric grease, and test again before replacing any sensor.

Where is the battery on a Polaris General?

The battery sits under the passenger side seat bottom on every General trim, including the General 4 and Deluxe models. Lift the seat and remove the rubber boot to reach the terminals. A healthy battery should read 12.6 to 12.8 volts at rest.

Will an unbuckled seat belt stop a Polaris General from starting?

No, the seat belt switch does not block cranking on the General. It sends a signal to the body control module that limits engine RPM once the machine is running, so a bad connector there feels like a stall or limp mode rather than a true no start.

What fuse is most likely to cause a Polaris General no start?

The 30 amp fuses in the firewall mounted fuse and relay block carry the main ignition and accessory feeds. A fuse can look intact but read open under a continuity test after vibration cracks the internal link. Check every 30 amp fuse with a meter, not just a visual look.

How do I stop my Polaris General battery from dying in storage?

Unplug the winch remote and pull the light bar fuse any time the machine sits for more than a week. A light bar controller left wired hot can draw 0.1 to 0.3 amps continuously, enough to flatten a battery in under two weeks.
