Key takeaways
- A healthy UTV battery should hold above 9.6 volts the entire time it cranks the engine.
- Voltage drop across a good cable or ground should stay under 0.2 volts while cranking.
- If the battery and cables test clean but the crank is still slow, the starter itself is worn inside.
- Heat makes a marginal starter drag worse, so a machine that cranks fine cold can still have a tired starter.
- Always test the cables and grounds before you spend money on a new starter.
The key turns, the starter spins, and the engine rolls over like it is fighting through cold syrup instead of snapping around the way it should. It still catches after a few extra seconds, so you shrug it off and ride anyway. Then it happens again the next morning, a little worse than before.
A slow crank has exactly two common causes. Either the battery and cables are not delivering enough current, or the starter motor itself has gotten tired and is dragging internally. From the seat, both feel almost identical, a sluggish groan instead of a sharp snap.
You do not need to guess or start swapping parts to find out which one it is. Fifteen minutes with a multimeter and the exact thresholds below will point you straight at the cause, whether you are running a 2016 Polaris Ranger or a 2023 Can-Am Defender.
Start With the Battery, Not the Starter
Before touching the starter or any cable, check the battery on its own. Let it rest for a few minutes with the engine off, then read the voltage at the posts with a multimeter set to DC volts.
A fully charged battery reads 12.6 to 12.8 volts at rest. Anything at 12.0 volts or below means it is significantly discharged, and it needs an hour or two on a charger before you test anything else.
Safety
Keep the machine in park or neutral with the parking brake set before any crank test. Remove rings and watches before working near the battery posts, since a dropped wrench across them can throw a serious spark.
Next, run an actual load test. Keep the meter on the battery posts and have a helper crank the engine for no more than 5 seconds while you watch the number.
A healthy battery holds above 9.6 volts through the whole crank. If it sags below that, especially down toward 8 volts or lower, the battery is weak and needs a proper load test on a battery tester or a replacement.
Voltage Drop: Finding Hidden Resistance in the Cables and Grounds
If the battery holds voltage fine under load but the crank is still slow, the next suspect is resistance somewhere between the battery and the starter. Corrosion inside a cable end or a loose ground strap chokes off current without ever showing up as low resting voltage.
A voltage drop test finds this fast. Set the meter to DC volts, then probe both ends of one section of the circuit at a time while a helper cranks the engine. You are measuring the voltage lost across that wire or connection while current is actually flowing, not just the voltage sitting at a point.
The Positive Cable Path
Start at the battery positive post and the cable clamped to it, then move to the far end of that cable at the solenoid or starter. Each healthy segment should drop under 0.2 volts while cranking.
A reading of 0.3 to 0.5 volts is marginal and worth cleaning. Anything over 0.5 volts on one segment is the fault, full stop.
The Ground Path
Owners skip the ground side more often than the positive side, and it fails just as often. Probe from the battery negative post to the engine block, then from the block to the frame if the starter grounds through a separate strap.
The same 0.2 volt threshold applies here. If you would rather test with the battery disconnected, an ohmmeter across a suspect ground strap should read under 1 ohm, and anything higher confirms corrosion inside it.
When the Numbers Check Out but the Crank Still Drags
If the battery holds above 9.6 volts under load and every cable and ground drops under 0.2 volts, the power delivery side is clean. A slow crank at that point means the drag is inside the starter itself.
Three things cause this. Worn carbon brushes lose spring tension and make poor contact with the commutator, so the motor pulls more current than it should just to keep turning. Worn bushings let the armature rub instead of spin freely, and a tight or gummed up drive gear can bind slightly as it engages the flywheel.
Any of these shows up as excess current draw. A healthy small UTV starter typically pulls somewhere around 90 to 150 amps while cranking. A dragging one can pull well over 200 amps, and that extra current is exactly why the crank sounds and feels weak even with a strong battery behind it.
Why a Marginal Starter Drags Worse When It Is Hot
This detail confuses a lot of owners. The machine cranks fine on a cool morning, then drags or hesitates after it has run for 20 or 30 minutes and gets shut off for a quick stop.
Heat is the reason. Worn brushes lose more spring tension as they warm, so contact gets worse right when you need it most, and the bushings and armature expand slightly with heat, tightening clearances that were already marginal from wear.
A starter riding right on the edge can crank acceptably cold and drag badly hot. If your slow crank shows up mainly after the engine has been running, heat soak on a worn starter is the likely explanation, not the battery.
Reading the Results: A Decision Table
Once you have three numbers, resting voltage, load test voltage, and cable voltage drop, this table points straight at the cause.
| Resting Voltage | Load Test (Cranking) | Cable/Ground Drop | Likely Cause |
|---|---|---|---|
| Below 12.0 volts | Not tested yet | Not tested yet | Battery undercharged, charge first and retest |
| 12.6 to 12.8 volts | Drops below 9.6 volts | Under 0.2 volts | Weak or failing battery cell |
| 12.6 to 12.8 volts | Holds above 9.6 volts | Over 0.5 volts on one segment | Corroded cable or ground connection |
| 12.6 to 12.8 volts | Holds above 9.6 volts | Under 0.2 volts everywhere | Worn starter drawing excess current |
Checklist: Your Test Order
- Rest the battery a few minutes and confirm 12.6 to 12.8 volts at the posts
- Load test by cranking no more than 5 seconds and watch for voltage above 9.6 volts
- Clean and inspect both battery terminals before testing anything downstream
- Voltage drop test the positive cable in two segments, under 0.2 volts each
- Voltage drop test the ground path from battery to engine block to frame
- If power delivery checks out clean, plan to pull and bench test the starter
The Mistake That Costs Owners a Good Starter

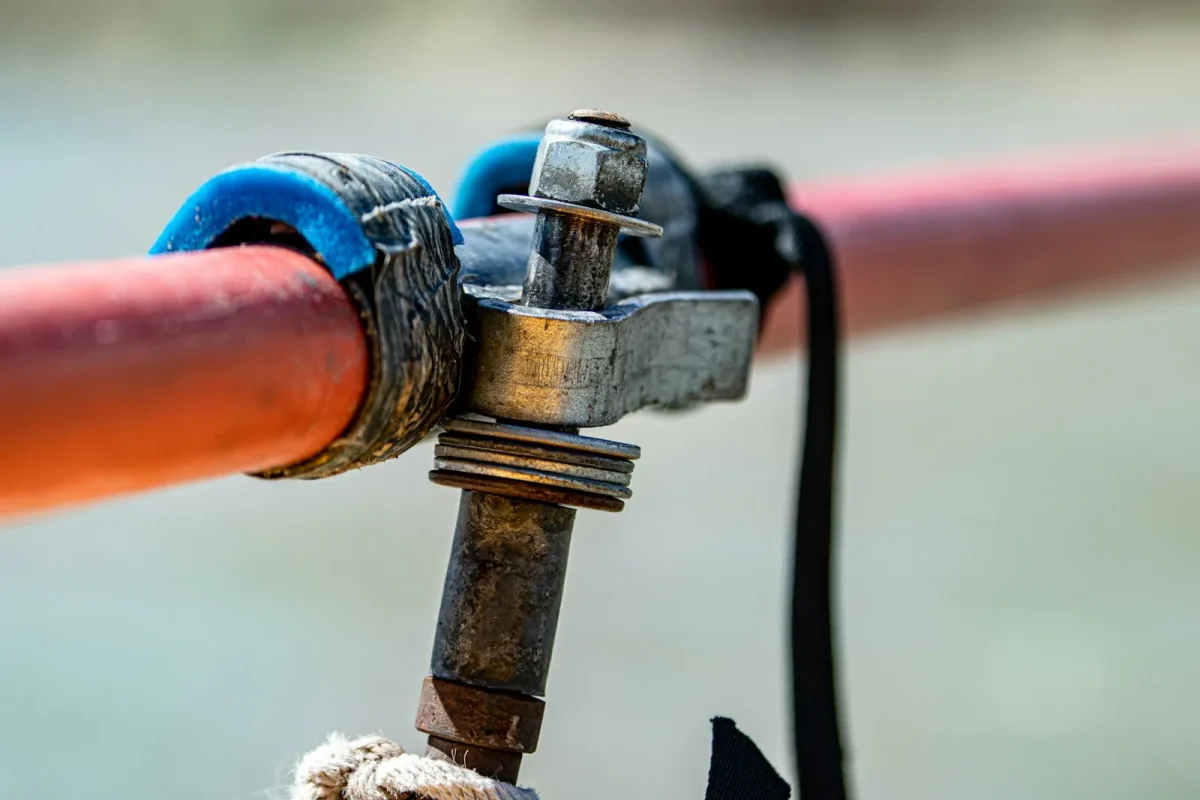

I have pulled starters that tested perfectly fine off machines more than once, all because nobody checked the ground strap first. One Ranger came in with a slow crank complaint and a ground strap bolt under the frame packed with dried mud and rust, dropping almost 0.9 volts under load.
The owner had already bought a replacement starter online for 180 dollars before bringing it in. A 10 minute cleaning of that ground connection, torqued back to 15 ft-lbs, fixed the crank completely, and the new starter went back in its box unopened.
Tip
Finish the cable and ground voltage drop tests before you condemn the starter. A worn starter is a common diagnosis, but a corroded connection is a common reality, and it costs nothing to rule out first.
Confirm the Starter, Then Get Back on the Trail
If every test above points at the starter, pull it and bench test it before you buy anything. A quick bench test with jumper cables confirms a worn starter beyond doubt, and a replacement typically runs 90 to 300 dollars in parts depending on the model, plus an hour or so of labor if a shop handles the removal and reinstall.
If the tests point at the battery or a cable instead, fix that one thing and re-run the load test. Most slow crank complaints end at a cleaned ground strap or a battery that needed a real charge, not a new starter.
Either way, write down the numbers you measured today. If the crank starts dragging again next season, you will already know exactly where to put the meter first.
Frequently asked questions
Can a slow crank fix itself after a battery charge?
Yes, if the cause was simply a low state of charge. Put the battery on a charger for an hour or two, then recheck resting voltage for 12.6 to 12.8 volts before you crank it again. If the crank is still slow after a full charge, move on to the cable and starter tests.
Is it safe to keep starting a UTV that cranks slow?
A few attempts will not hurt anything, but repeated long cranking sessions overheat the starter and can drain a marginal battery to the point it will not start at all. Keep each crank attempt under 5 seconds and let the starter cool for a minute or two between tries.
Will a jump start tell me if it is the battery or the starter?
It helps narrow things down. If a jump makes the engine crank normally, the battery or its connections are the likely cause. If it still cranks slow even on a jump box, the drag is more likely inside the starter itself.
How much current does a UTV starter normally draw?
A healthy small UTV starter typically pulls around 90 to 150 amps while cranking. A worn starter with dragging brushes or bushings can pull over 200 amps, which is part of why it sounds and feels weaker even with good battery voltage behind it.
Can cold weather alone cause a slow crank?
Cold thickens engine oil and reduces a battery's usable capacity at the same time, so a marginal battery that was fine in summer can crank slow at 30 degrees Fahrenheit. If the slow crank only happens in cold weather and the battery tests fine warm, load test it again at the actual cold temperature before ruling it out.
